>MixaTherm

MixaTherm

Kettle, Mixer and Cooler

Cooking at up to 120 °C and stirring or mixing at the same time, mashing food or whipping it into an airy consistency –
everything is possible, all in one operation, without tiresome decanting.
Volumes from 40 to 500 liters.

Technology

Premium quality

Durable and robust technology

Investment

Economical

Safe investment

Work

Ecological

Efficient, sustainable work





Main functions

Versatile, efficient and powerful

Mutlitalent for commercial kitchens

Cook, stirr, chill – all in one process.

Easy, automated application

If desired, you can be supported by pre-installed or self-programmed sequences. The entire cooking process is monitored and the MixaTherm alerts you as soon as you need to act. The addition of ingredients, spices or binders is also well thought out. Simply add them via the fi ller opening whenever the time is right.

Resource-friendly and safe

The lid always remains closed, saving energy and protecting the environment and your wallet. The necessary safety is also taken care of. The stirrer stops automatically as soon as you open the lid.

Stirring Kettle





Stirring is fun

Simply at the touch of a button

Mashed potatoes, stews, risotto, milk dishes, mousse and much more can be prepared quickly and easily in just one step. The MixaTherm also has the right stirring programs on board. Stirring speeds from 5 to 155 revolutions per minute offer the necessary flexibility and the stirrer motor with up to 477 Nm the necessary power.

From small to big

From 200 to several thousand meals per day. From 40 to 500 liters volume so that nothing is left to be desired.

No noise pollution

The agitator works very quietly, reliably and efficiently. The low noise level of less than 55 dB ensures a pleasant working atmosphere.

Mashed potatoes





Cook&Chill – hygienic and ressource-saving

HACCP-compliant recooling

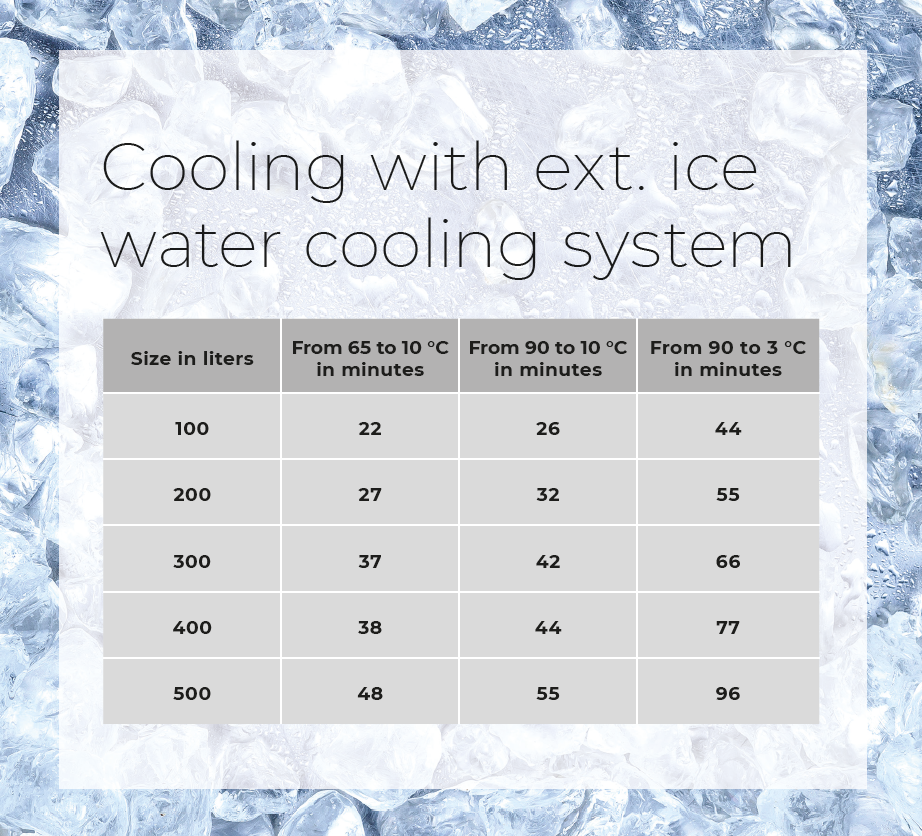

The recooling of freshly cooked food is particularly fast and hygienically safe with the MixaTherm. For example, up to 300 l of liquid are cooled from 90 °C to 3 °C in only 66 minutes. The food is chilled in accordance with HACCP.

Relief of shock cooler capacities

The cooling device integrated in the boiler wall starts at the push of a button or can be programmed. Your shock cooler capacities are spared and are ready for other tasks.

Optionally via tap water or external ice water cooling system

High-performance cooling can be provided either by tap water or even more effectively by an external ice-water cooling system. If required, you can keep the chilled food at your desired temperature, accurate to the degree.

Cooling

Features and more functions

That makes the difference



Easy to use
Easy to use

The clearly arranged touch control display can be rotated and fl exibly positionable. Recipes simplify the application and always ensure a consistent cooking result.

Easy tilting
Easy tilting

Easy tipping of liquid food with electric tilting function and adjustable speed. The adjustable TiltBack function facilitates manual tilting and ensures spill-free portioning.

Portioning to the liter
Portioning to the liter

The specifi ed quantity is tilted out to the exact liter. Slow stirring mixes the food evenly when pouring. The GN support makes portioning even easier.

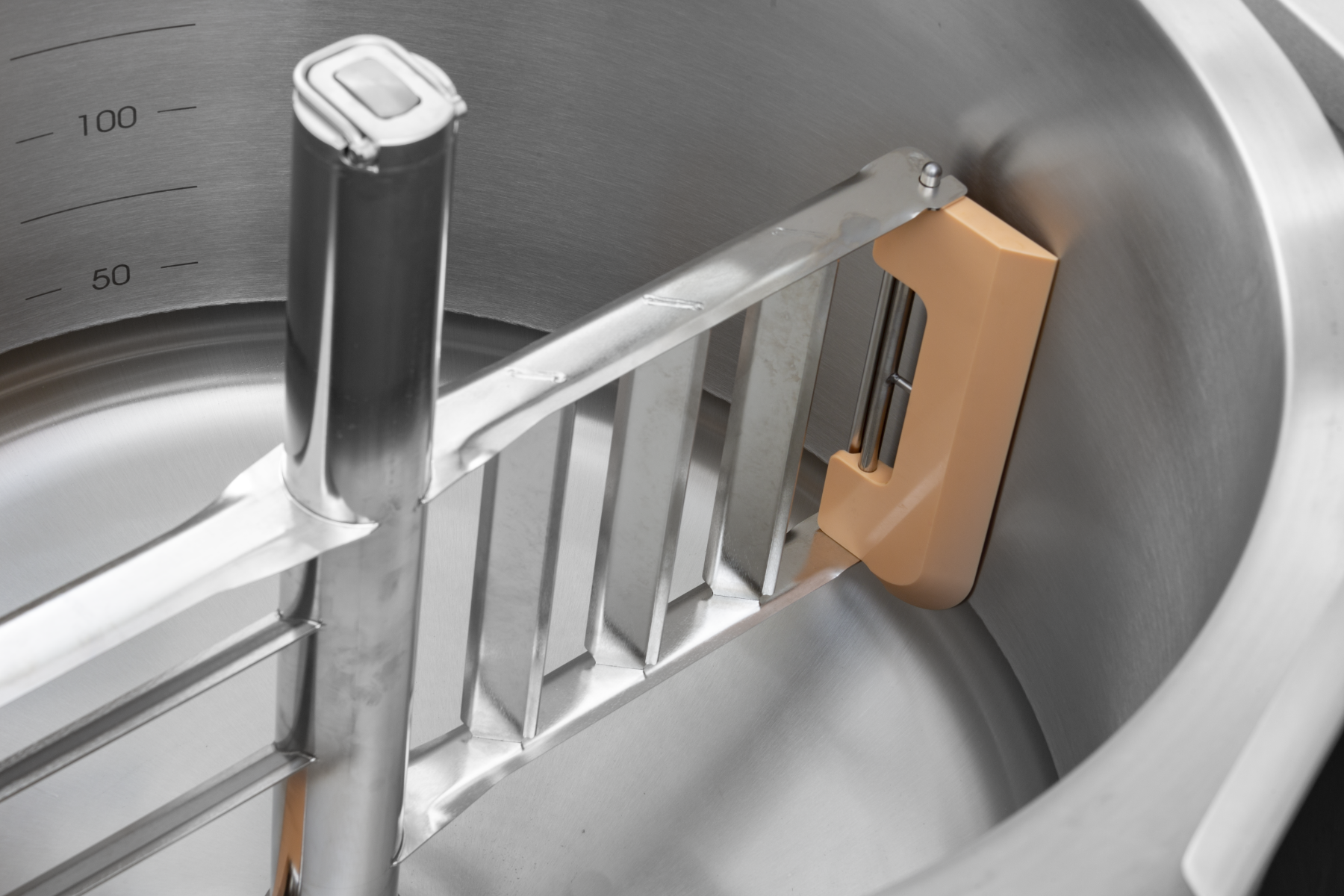

Stirring unit
Stirring unit

The stirring arm is light and stable. Easy to mount wipers for wall and floor.

Quiet but powerful performance
Quiet but powerful performance

Powerful agitator motor from 164 to 477 Nm with variable speed from 5-155 rpm. The noise level during agitation is below 55 dB.

Water Dosing System
Water Dosing System

No waiting, no control needed The water is automatically fi lled to the exact liter.

Maximum safety
Maximum safety

Even after 3 hours of cooking, the outer jacket is only 40 °C. The stirrer stops automatically when the lid is opened. Stirring with open lid is possible up to 20 rpm on request.

Simple cleaning
Simple cleaning

Easy-to-clean kettle surface. A special cleaning program and optional cleaning tools make cleaning the inside and outside of the boiler even easier.

Sustainable
Sustainable

High energy efficiency and high cooling effect with low water consumption.

wysiwyg/tech-detail.png
Connect

The energy consumption data is displayed. The EcoAssistant shows potential savings.

Models

The right ELRO models for every use

Select the wanted model type:

OptiMix

MultiMix

MaxiMix

● Standard      ○ Optional

Type OptiMix 40 60 80 100 120 150 200 250 300

Dimensions W x D x H in mm
(with standard pillars)

1246 x
1000 x
900
1295 x
1000 x
900
1375 x
1000 x
900
1375 x
1080 x
900
1335 x
1080 x
900
1492 x
1090 x
900
1542 x
1170 x
900
1640 x
1250 x
900
1740x
1330 x
900

Connected load electric
in kW 440V 3N AC 50Hz

16,1 16,1 16,1 21,1 21,1 32,2 32,2 48,0 48,0

Connected load steam
in kW 440V 3N AC 50Hz

1,2 1,2 1,2 1,2 1,2 2,3 2,3 3,1 3,1

Gross capacity in liters

48

70 91

113

133 169 222

278

334

Usable capacity in liters

40 60

80

100 120

150

200 250 300

Pouring height in mm

600

600 600 600 600 600 600 600 600

QuickChill (recooling)

-
-
-



● Standard      ○ Optional

Type MultiMix 40 60 80 100 120 150 200 250 300

Dimensions W x D x H in mm
(with standard pillars)

1206 x
1000 x
900
1255 x
1000 x
900
1285 x
1000 x
900
1335 x
1000 x
900
1335 x
1080 x
900
1452 x
1030 x
900
1502 x
1100 x
900
1600 x
1090 x
900
1706 x
1150 x
900

Connected load electric
in kW 440V 3N AC 50Hz

16,1 16,1 16,1 21,1 21,1 32,2 32,2 48,0 48,0

Connected load steam
in kW 440V 3N AC 50Hz

1,2 1,2 1,2 1,2 1,2 2,3 2,3 3,1 3,1

Gross capacity in liters

48

70 91

113

133 169 222

278

334

Usable capacity in liters

40 60

80

100 120

150

200 250 300

Pouring height in mm

400

400 400 400 400 400 400 400 400

QuickChill (recooling)

-
-
-
-
-
-
-
-
-



● Standard      ○ Optional

Type MaxiMix 400 500

Dimensions W x D x H in mm
(with standard pillars)

1840 x 1450 x 900 1840 x 1450 x 1017

Connected load electric
in kW 440V 3N AC 50Hz

63,0 63,0

Connected load steam
in kW 440V 3N AC 50Hz

3,1 3,1

Gross capacity in liters

447

547

Usable capacity in liters

400 500

Pouring height in mm

400 400

QuickChill (recooling)
