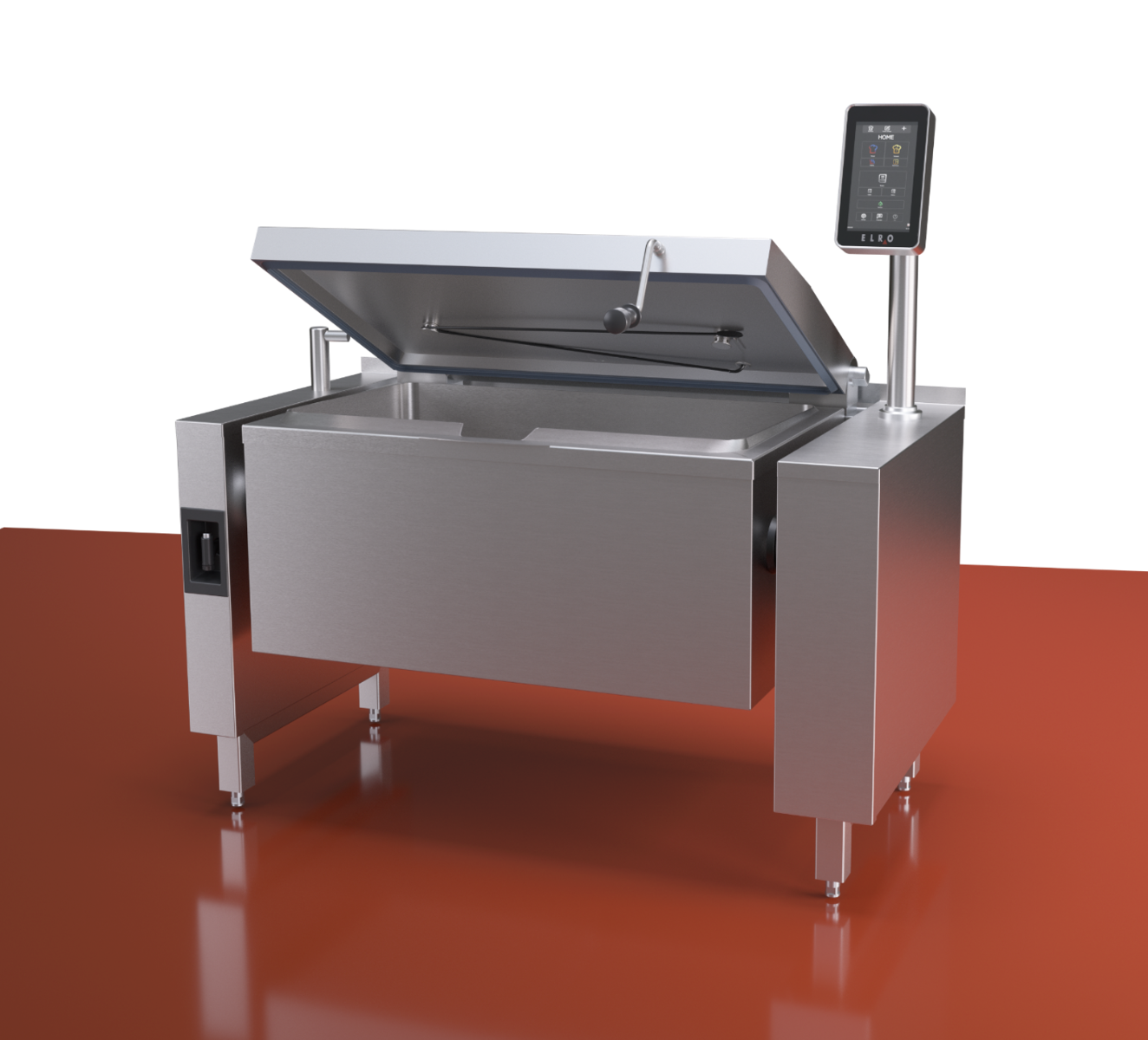

MetaTherm
Multifunction by ELRO
The ELRO MetaTherm-Cooking System impresses with its heating power and flexibility. Only one unit is needed for boiling, stewing, braising, low-temperature cooking, delta-T cooking, roasting, frying and pressure cooking.
And always in the usual ELRO premium quality.
Premium quality
Durable and robust technology
Economical
Safe investment
Ecological
Efficient, sustainable work
The highest level of efficiency. The ELRO MetaTherm is absolutely crucial for a production kitchen with our organisational processes.
Head of Gastronomy Jungfrau RailwaysMain functions
Variability to the point
Nine cooking methods - One cooking system
With temperatures up to 250 °C food is prepared with delicious roasted flavors. Thanks to fast heating, liquids can be prepared efficiently, powerfully or delicately.
Automatic lifting and lowering
Optionally, with the MetaTherm-Cooking System pasta, rice or deep-fried products can be prepared automatically. The automated lifting and lowering system allows you to prepare food to your requirements – whilst you have your hands free to focus on additional food preparation.
Your advantages
Up to 30 % less energy consumption. Up to 30 % less cleaning effort. Maximum efficiency in food preparation

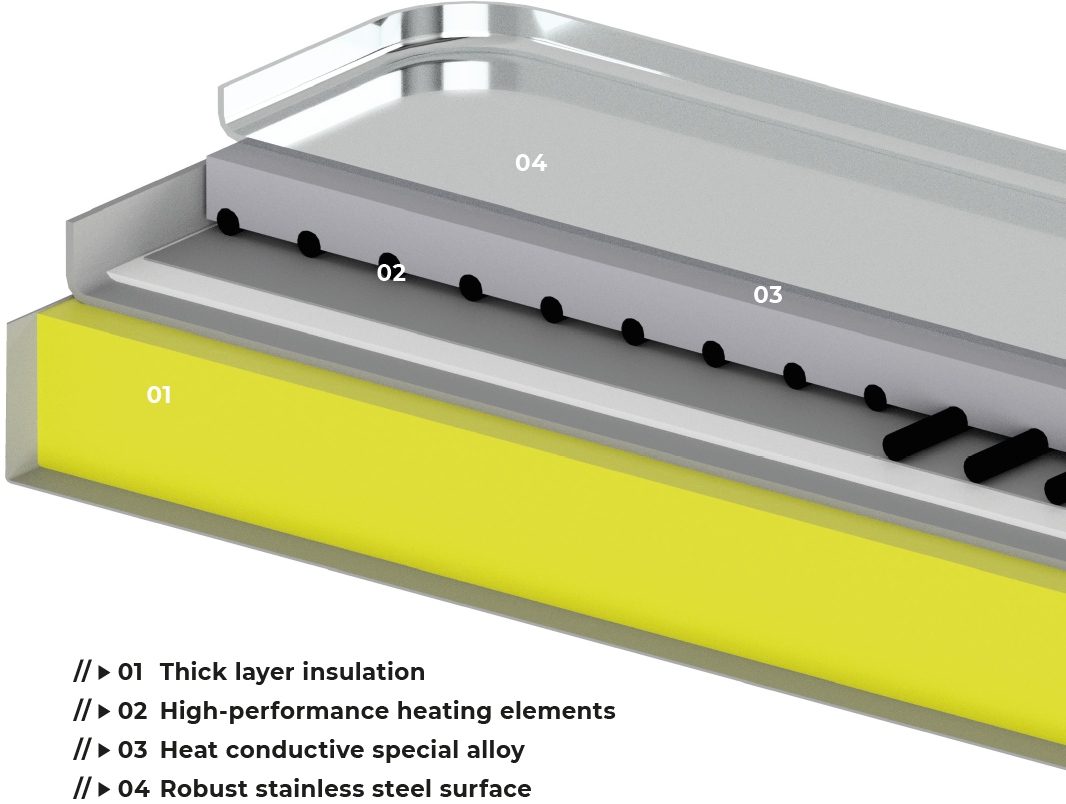

ELROlit frying bottom – strength and endurance
Flexible use, lower investment costs
The ELROlit frying bottom is both robust and extremely powerful. The multilayer heat-conducting base ensures even heat distribution.
Large quantities in a short time
Prepare high-volume quantities efficiently. Thanks to the design of the base, heat is stored and this enables the highest energy savings.
Fast cleaning
The special surface of the frying bottom minimises food burning and prevents food sticking to the bottom. This as well as the hygienic pan design allows for easy and fast intermediate and final cleaning.
ELRO pressure cooking – unique quality and efficiency
An invention of ours
With ELRO pressure cooking, you enter a new world of efficiency and quality. The patented high-speed pressure-cooking technology enables efficient and sustainable pressure generation.
High-speed pressure generation – 50 %* faster
An integrated or external steam generator produces satured steam right at the beginning of the process. The pressure of 0.34 bar builds up in the cooking chamber in just a few seconds. It is a must, especially for sensitive foods such as broccoli, green asparagus or spinach. The only way to preserve flavour, colour, vitamins and minerals to the maximum. Just as fast pressure buildup is crucial for outstanding food quality and efficient processes, so is fast pressure release. Thanks to the unique, actively cooled lid, the pressure is released in just a few seconds. Conventional devices need up to 15 minutes for this.
Pressure Control System – consistent quality
It ensures that no unwanted air remains in the cooking chamber during pressure cooking. These are detected by a sensor and quickly removed via the valve. The result: Saturated fresh steam in the entire cooking chamber will ensure outstanding and uniform food quality.
Features and more functions

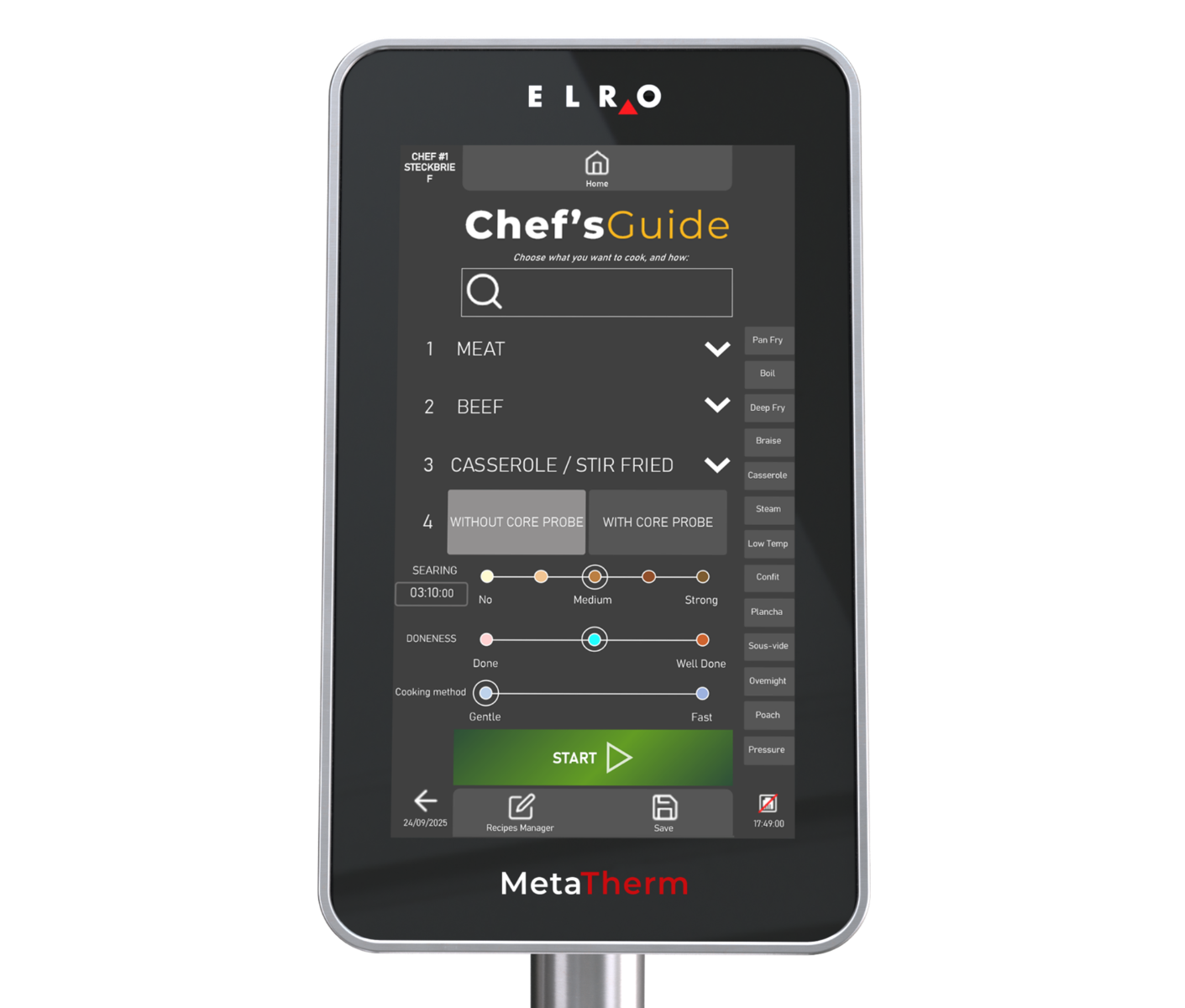

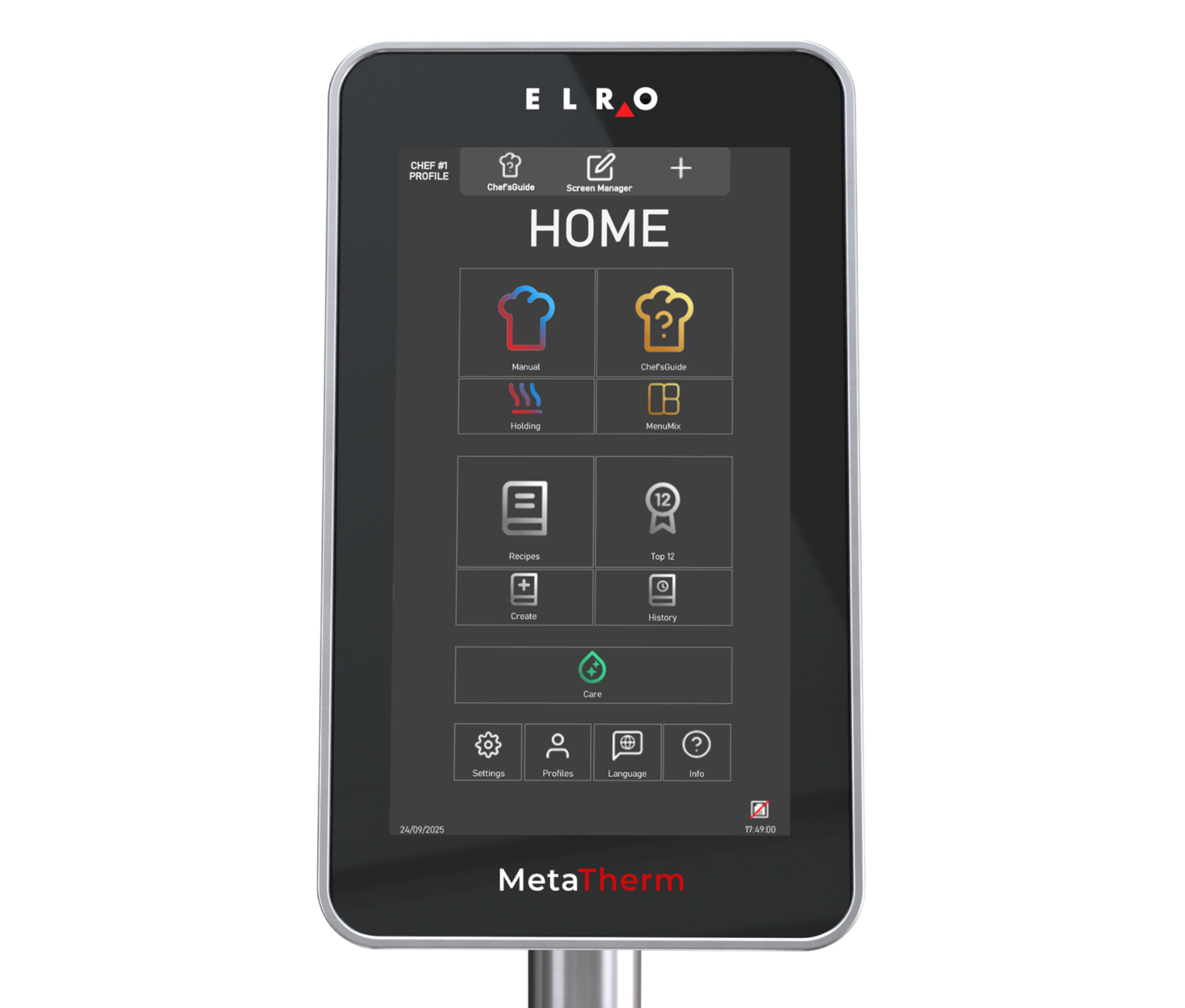

ELRO Touch
Visible from afar, ergonomically and safely arranged, it makes operation child's play.
ELRO Easy
Simple, ergonomic operation with robust rotary control, display of set and actual temperature and indicator light.

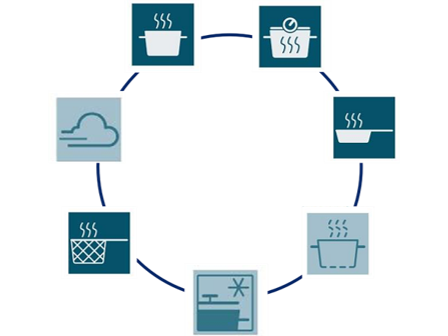

Quick Cook Select
Programmes automate processes and ensure outstanding food quality at all times without effort.

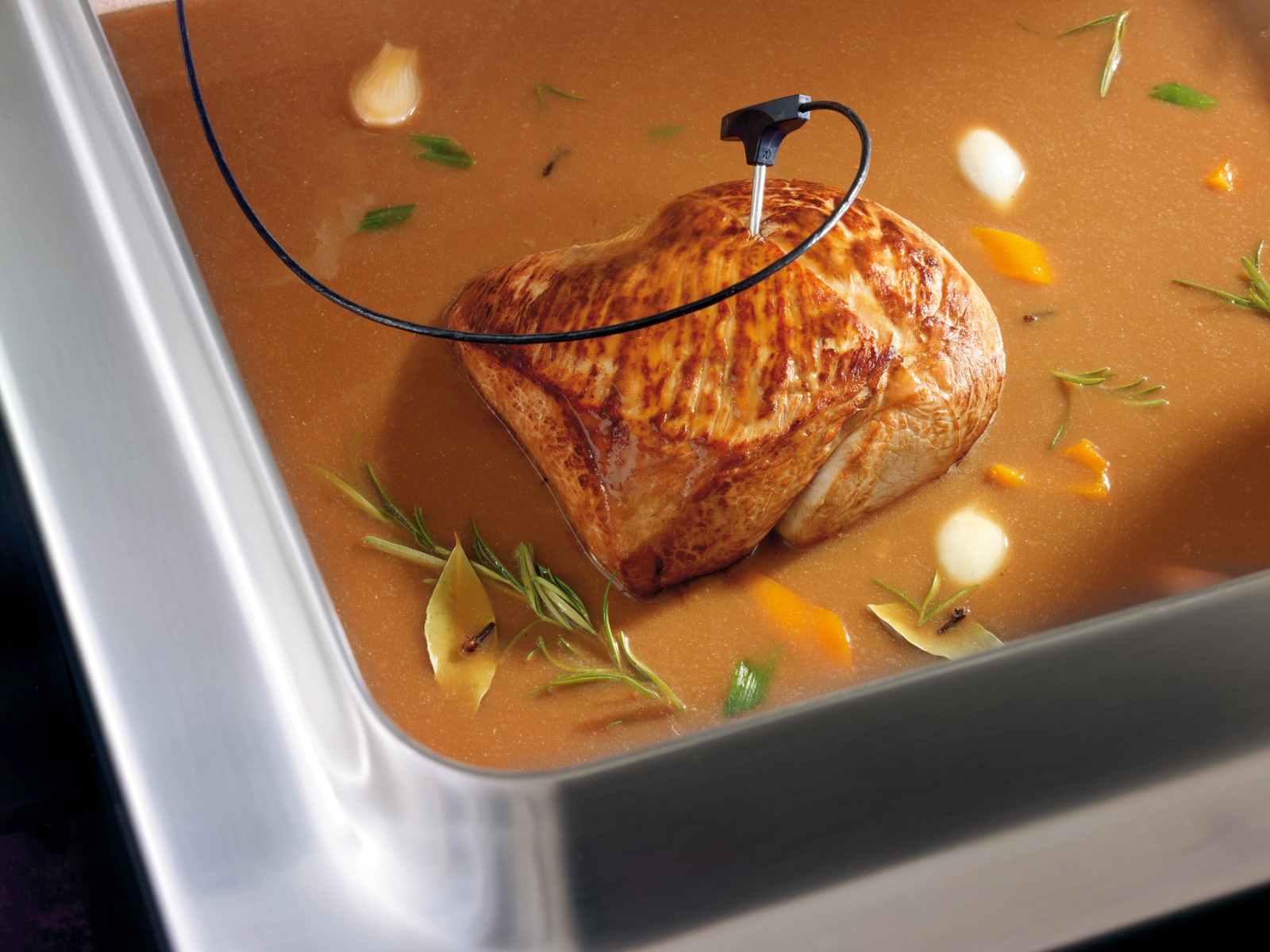

Core temperature sensor
6 measuring points always detect the correct core temperature, in a hygienically designed receptacle. Positioned on the lid and is ready when you need it.
Tilting
Whether electronically (optional) or manually operated, spillage of liquid is avoided.

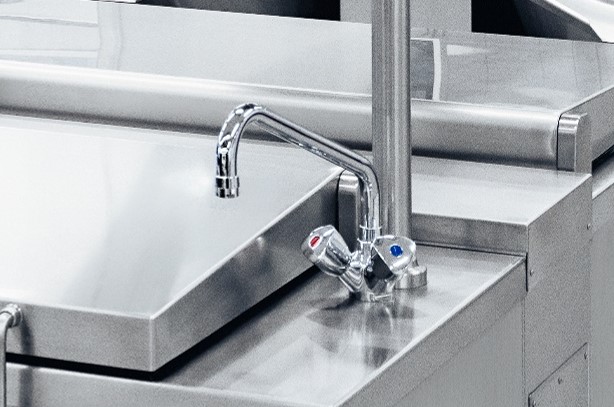

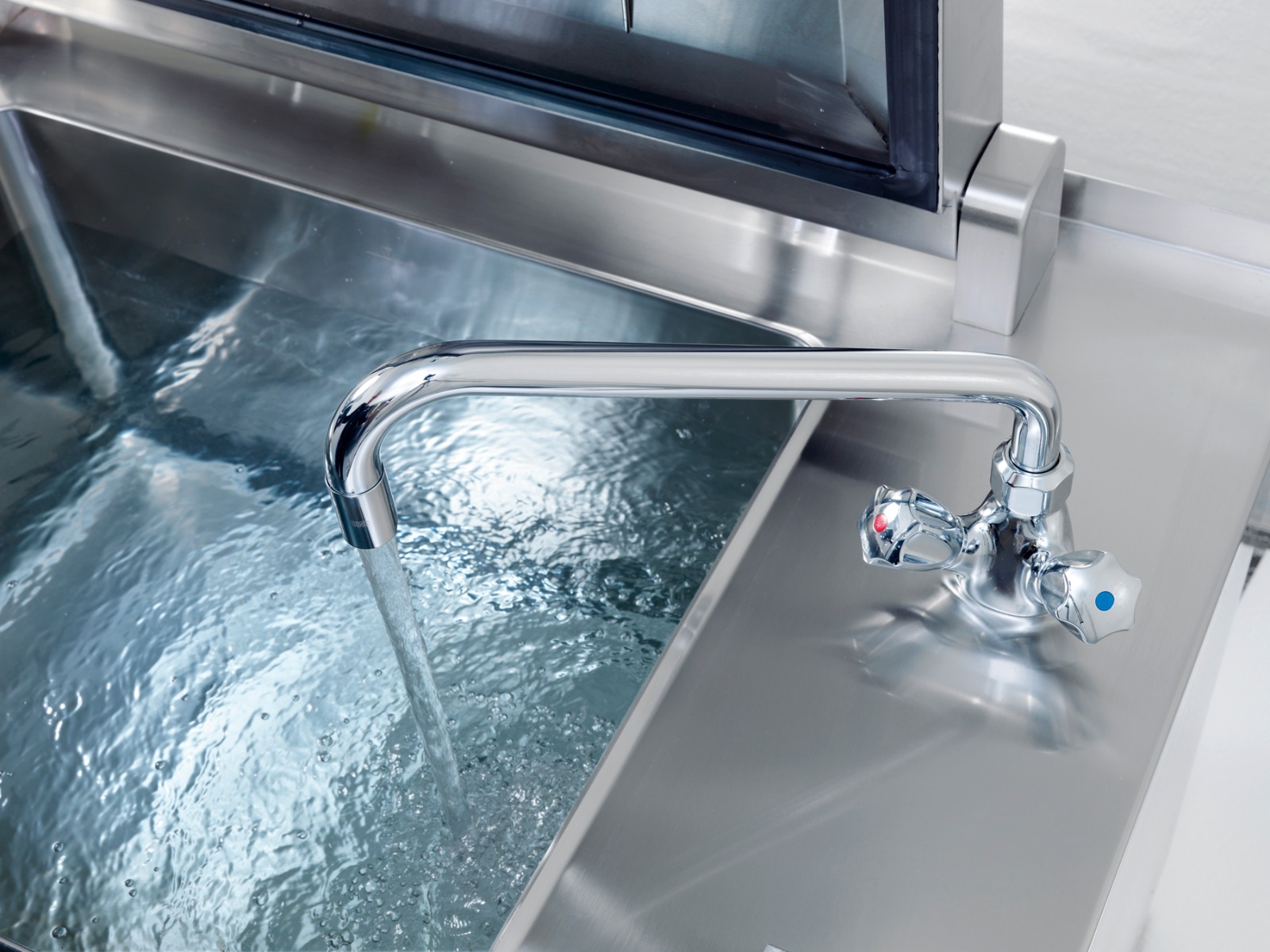

Water tap
A robust professional tap makes water available whenever you need it.

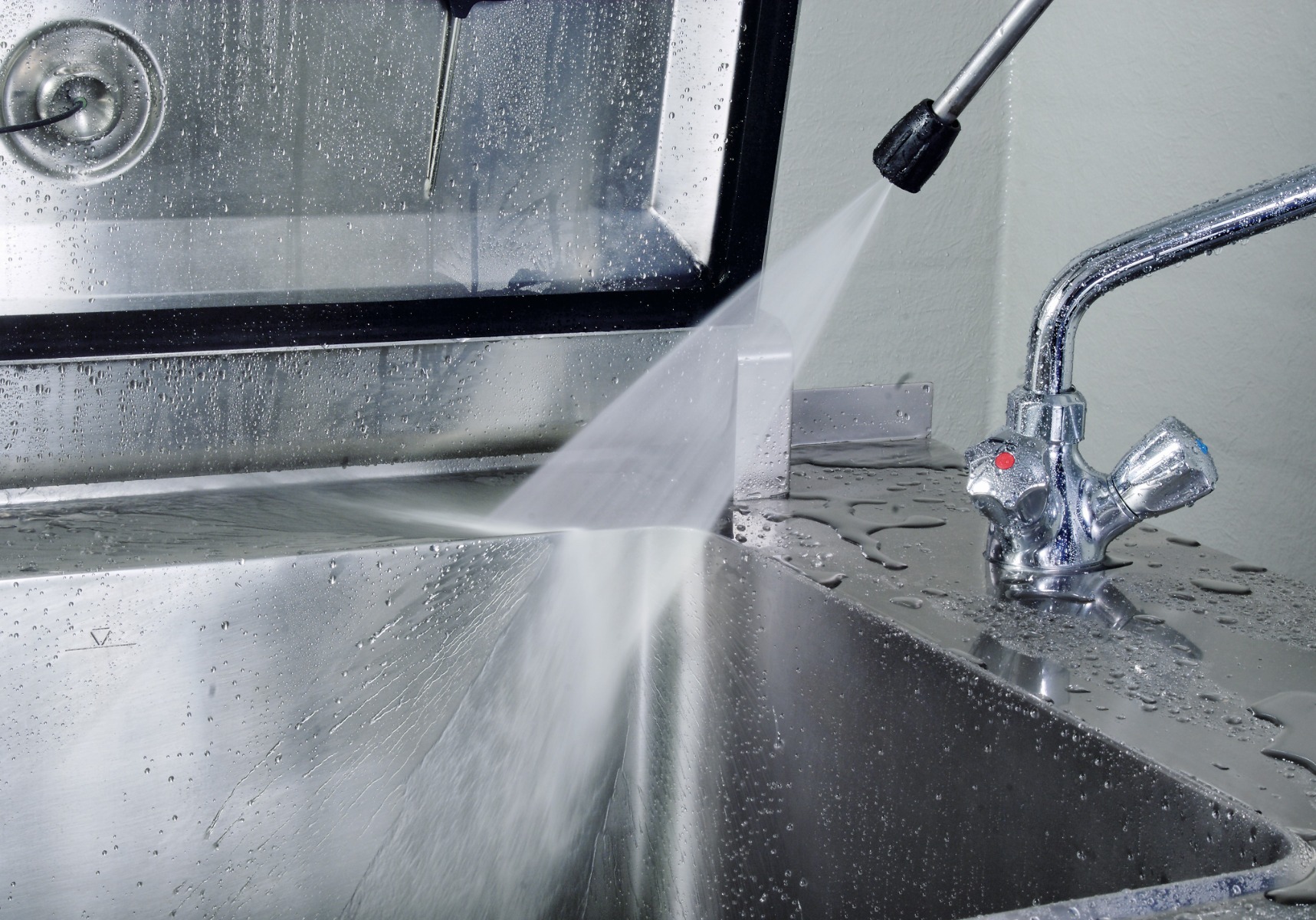

Fast cleaning
The special ELRO design with the hygienic link makes cleaning easier and and makes it up to 30 % faster.

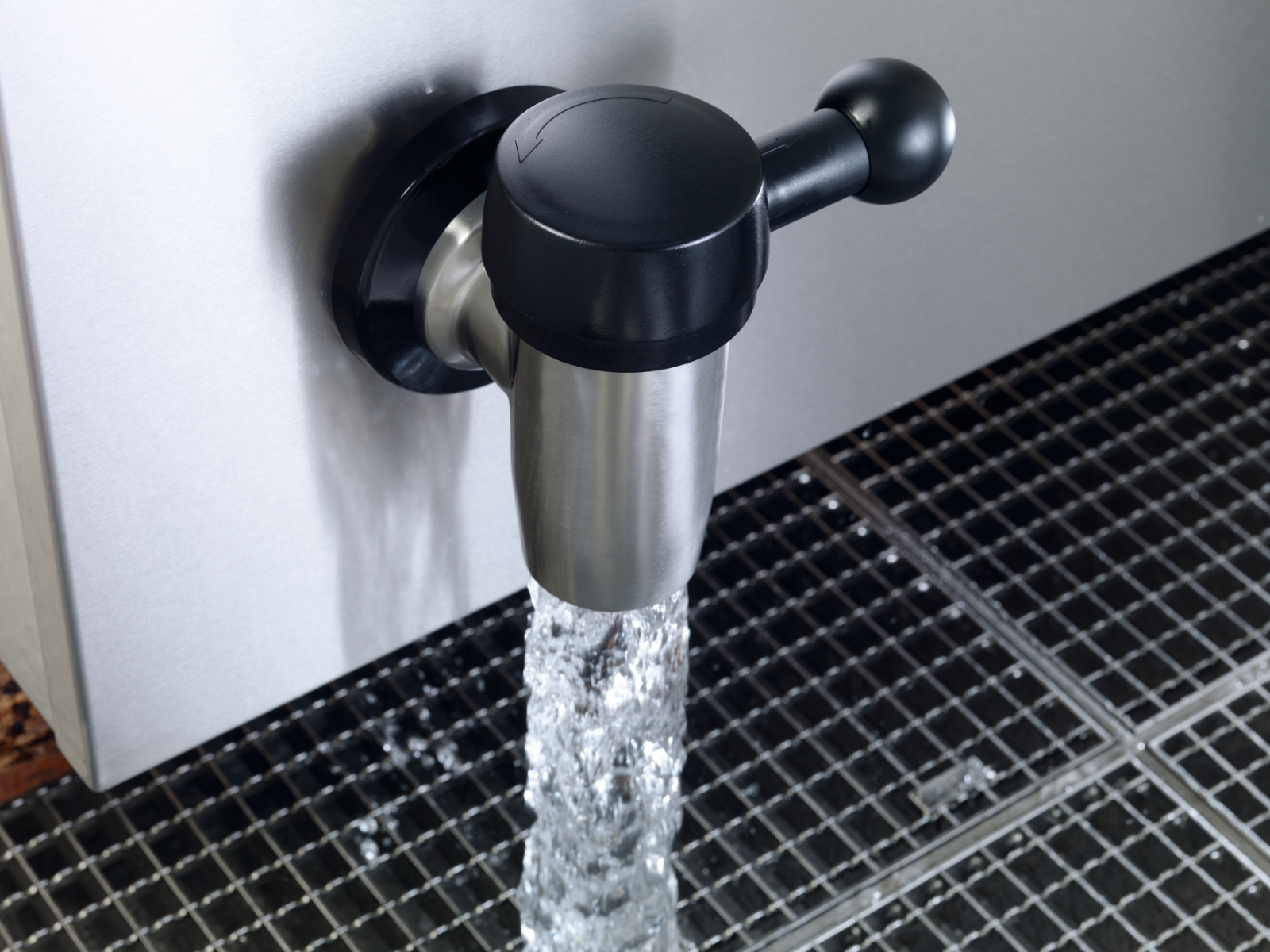

ELRO Hygiene drain
Robust, hygienic drain allows even larger pieces to pass through and ensures splash-free discharge thanks to the design.
Water Dosing System (WDS)
No waiting, no checking. The water is automatically filled to the exact liter.
Power Management System (PMS)
Intelligent performance Optimisation, which reduces the connected load by up to 30 % from 3 cooking systems onwards.

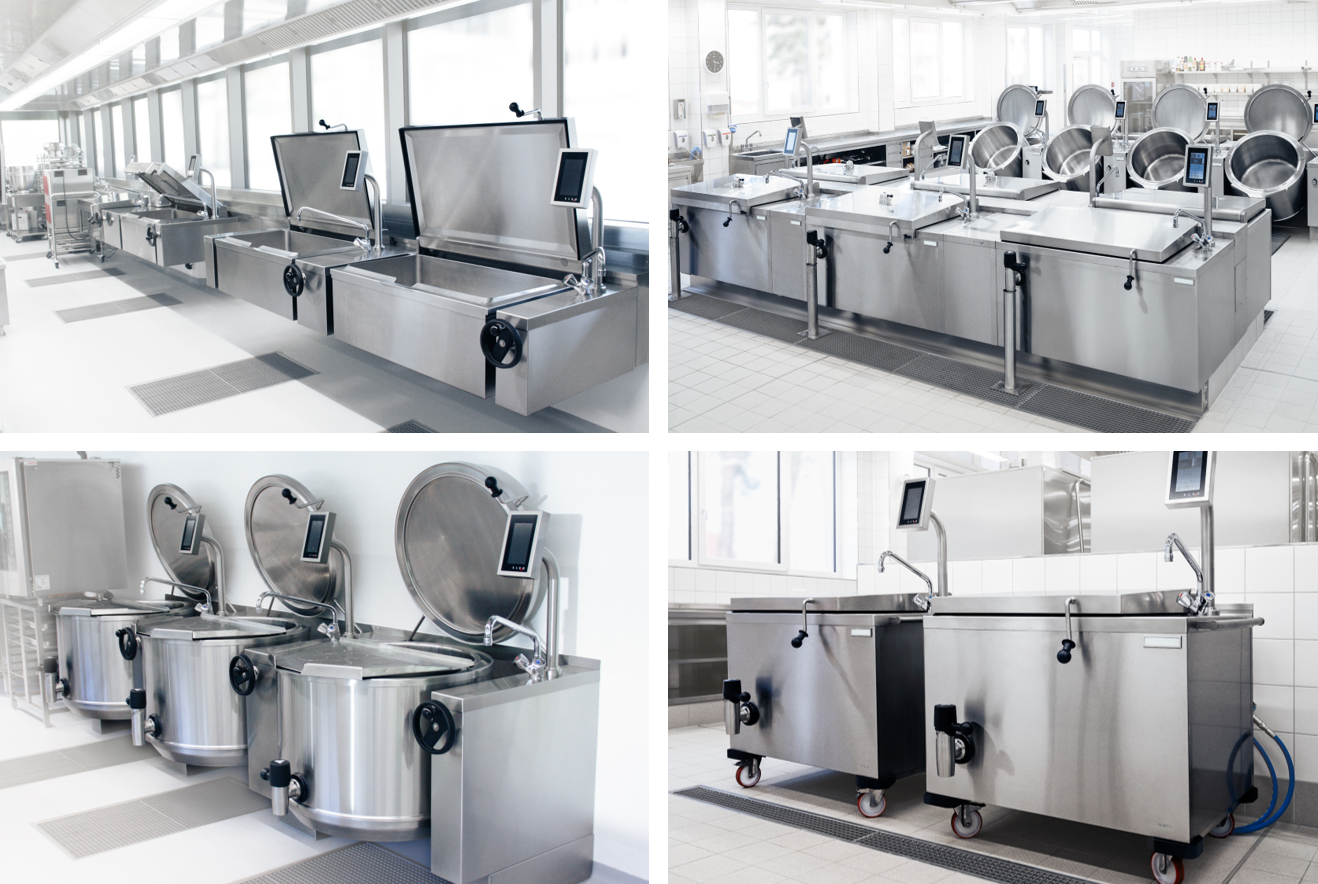

Flexible installation options
Wallmounted, on a base, freestanding, on feet or mobile. We offer the right installation solution tailored precisely to your needs.
Quality produced
Robust and durable multilayer heat-conducting base for powerful searing and sensitive cooking.
Power options (connected load)
Select the optimum version for your connected load from three power levels ED / EDS / EDP.
Safety
The GS certificate underpins the high safety of our cooking kettles in daily operation.
Sustainable
Up to 30 %* faster and up to 30 %* less energy consumption. That's easy on the wallet and the environment.
ELRO Connect
Discover ELRO Connect
Cooking programs, HACCP data, appliance settings - all online.
* Compared to conventional cooking devices
Profitability
ELRO cooking systems are not only reliable and durable, they’re also very economical in terms of resource consumption.
This means that your MetaTherm-Cooking System will pay for itself in a short time.
The payback period of a MetaTherm-Cooking System is less than 1.5 years.
Models
The right ELRO models for every use
Select the wanted model type:
Non tilting
tilting
● Standard ○ Optional
| Type | Non tilting | |||||
| PGN21 |
PGN22 DBGN22 |
PGN23 DBGN23 |
PGN31 |
PGN32 DBGN32 |
PGN33 DBGN33 |
|
| Dimensions / Capacity / Power | ||||||
|
Number of meals |
100 |
100-275 |
150-300 |
100-250 |
175-325 |
200-350 |
|
Usable volume (liter) |
40 | 75 | 100 | 60 | 110 | 150 |
|
Frying surface |
2 x 1/1 GN (0,37 m²) | 2x 1/1 GN (0,37 m²) | 2x 1/1 GN (0,37 m²) | 3 x 1/1 GN (0,57 m²) | 3x 1/1 GN (0,57 m2) | 3x 1/1 GN (0,57 m²) |
|
Crucible depth in mm |
145 | 240 | 300 | 145 | 240 | 300 |
|
Unit widht in mm |
1050 |
1050 |
1050 |
1400 |
1400 |
1400 |
|
Unit depth in mm |
800 |
800 |
800 |
800 |
800 |
800 |
|
Unit height in mm |
700 |
700 |
700 |
700 |
700 |
700 |
|
Base, Feet, Castors in mm |
200 |
200 |
200 |
200 |
200 |
200 |
|
Connected load in kW |
15,1 |
15,1 |
15,1 |
23,5 |
23,5 |
23,5 |
|
Fuse in A |
21,7 |
21,7 |
21,7 |
33,9 |
33,9 |
33,9 |
|
Connected load in kW |
22,0 |
22,0 |
22,0 |
33,0 |
33,0 |
33,0 |
|
Fuse in A (High-Power) |
31,8 |
31,8 |
31,8 |
47,8 |
47,8 |
47,8 |
|
Connected load in kW |
- |
20,0 |
20,0 |
- |
30,0 |
30,0 |
|
Fuse in A (High-speed)* |
- |
28,9 |
28,9 |
- |
43,5 |
43,5 |
|
Voltage 400 V 3LPE 50/60 Hz |
● |
● |
● |
● |
● |
● |
| Options / Installation | ||||||
|
Pressure cooking* |
- |
○ |
○ |
- |
○ |
- |
|
High-Power |
○ |
○
|
○
|
○ |
○
|
○ |
|
High-speed* |
- |
○
|
○
|
- |
○
|
|
|
Installation wall |
○ |
○
|
○
|
○ |
○
|
○ |
|
Hygiene installation |
○ |
○
|
○
|
○ |
○
|
○ |
|
Installation CNS base |
○ |
○
|
○
|
○ |
○
|
○ |
|
Installation feet |
● |
● |
● |
● |
● |
● |
|
Mobile Version* |
○ |
○
|
○
|
○ |
○
|
○ |
|
Wall mounted 400 mm |
○ |
○
|
○
|
○ |
○
|
○ |
|
Wall mounted 700 mm |
○ |
○
|
○
|
○ |
○
|
○ |
* Only possible with MetaTherm Touch display
● Standard ○ Optional
| Type | tilting | |||
|
PKGN22 |
PKGN23 |
PKGN32 |
PKGN33 |
|
| Dimensions / Capacity / Power | ||||
|
Number of meals |
100-270 |
150-300 |
150-325 |
200-350 |
|
Usable volume (liter) |
70 |
100 |
110 |
145 |
|
Frying surface |
72 × 1/1 GN (0,37 m²) |
72 × 1/1 GN (0,37 m²) |
3 × 1/1 GN (0,57 m²) |
3 × 1/1 GN (0,57 m²) |
|
Crucible depth in mm |
240 |
300 |
240 |
300 |
|
Unit widht in mm |
1200 |
1200 |
1550 |
1550 |
|
Unit depth in mm |
800 |
800 |
800 |
800 |
|
Unit height in mm |
700 |
700 |
700 |
700 |
|
Base, Feet, Castors in mm |
200 |
200 |
200 |
200 |
|
Connected load in kW |
15,1 |
15,1 |
23,5 |
23,5 |
|
Fuse in A |
21,7 |
21,7 |
33,9 |
33,9 |
|
Connected load in kW (High Power) |
22,0 |
22,0 |
33,0 |
33,0 |
|
Fuse in A (High-Power) |
31,8 |
31,8 |
47,8 |
47,8 |
|
Connected load in kW (High-speed)* |
20,0 |
20,0 |
30,0 |
30,0 |
|
Fuse in A (High-speed)* |
28,9 |
28,9 |
43,5 |
43,5 |
|
Voltage 400 V 3LPE 50/60 Hz |
● |
● |
● |
● |
| Options / Installation | ||||
|
Pressure cooking* |
○ |
○ |
○ |
○ |
|
High-Power |
○ |
○
|
○
|
○ |
|
High-speed* |
○ |
○
|
○
|
○ |
|
Installation wall |
○ |
○
|
○
|
○ |
|
Hygiene installation |
○ |
○
|
○
|
○ |
|
Installation CNS base |
○ |
○
|
○
|
○ |
|
Installation feet |
● |
● |
● |
● |
|
Mobile Version* |
○ |
○
|
○
|
○ |
|
Wall mounted 400 mm |
○ |
○
|
○
|
○ |
|
Wall mounted 700 mm |
○ |
○
|
○
|
○ |
* Only possible with MetaTherm Touch display
